6 Models with capacities ranging from 6,500 to 22,000 pounds per column.
2 Versions: Indoor and Outdoor Installation.

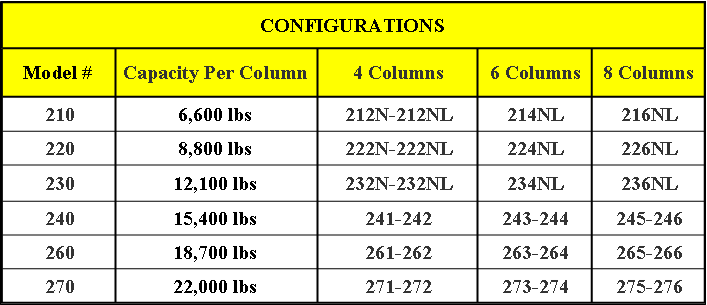

3 Configurations: 4, 6 or 8 columns.
Large and solid base for maximum stability under load.
Lifting spindles in rolled steel with bronze main and safety nuts.
Screws are automatically lubricated by felt pads supplied by a permanent oil reservoir which guarantees lubrication during movement. A series of runners (10 per carriage), manufactured in Ertalon, with low friction coefficient and excellent resistance to wear, guarantee a balanced lifting of the vehicle in any position. |

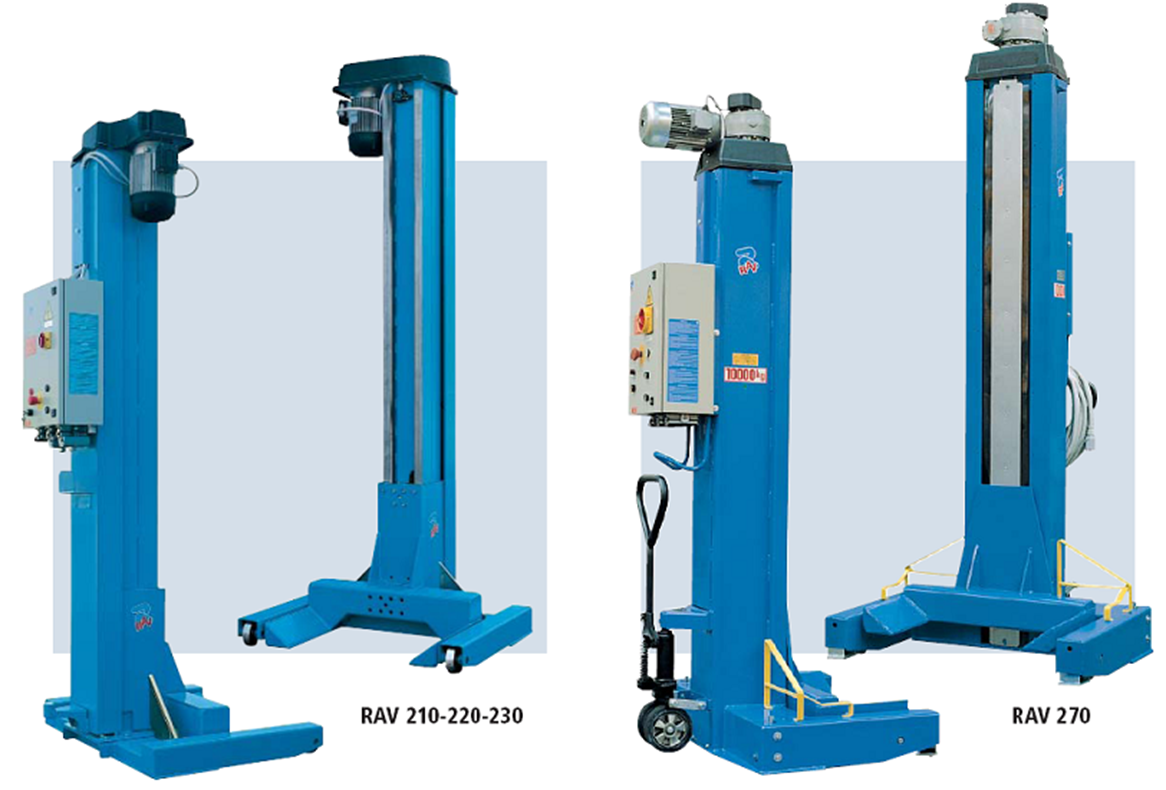

Columns in boxed sheet steel with sliding profiles of rollers in high resistance steel. Steel rollers for carriage movement fitted on self-lubricating bearings requiring no maintenance.
Direct drive to the spindle by means of a self-braking motor-gear unit.
Automatic lubrication of the spindle and nuts.
