Multi-voltage Glow Plug Tester

P/N: AMGPT1

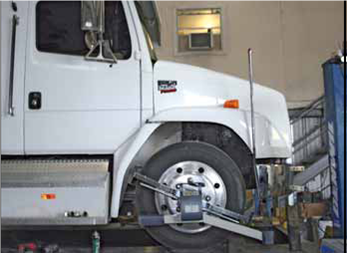

TD8080T BTH – BTHR represent the latest technology in truck alignment.
These new developed aligners feature state of the art components.
Specific truck alignment software developed with and for truck alignment specialists.

Data management and display program in WINDOWS environment.
Data bank with vehicle data sheets already entered and further blank sheets to be filled.
Customer data bank for recording jobs with search by customer name or vehicle plate number.

Summary and comparison of diagnosis/repair values on a single screen.

Measurement of multiple axles vehicles thanks to an extremely easy-to-follow procedure.

SUMMARY:

  • Significantly higher income production through superior efficiency
  • Much faster operating times without any loss of accuracy
  • Simpler system to learn, less training time involved.
  • The wheeled control unit houses the computer, the printer and the high-resolution monitor.
  • Special supports on the side of the control unit allow housing and recharging the measuring-head batteries. Large industrial wheels for easy movement inside the workshop.

BLUETOOTH

  • Bluetooth Communication provides the fastest and most secure data transfer without wires, receivers, or antennas. Our communication is so stable that no back-up cables are included or needed. Operate the alignment program from any sensor head. Control panel on each head eliminates the need to walk back and forth to the console. Precision accuracy due to our CCD measuring system.

Multi-voltage Glow Plug Tester

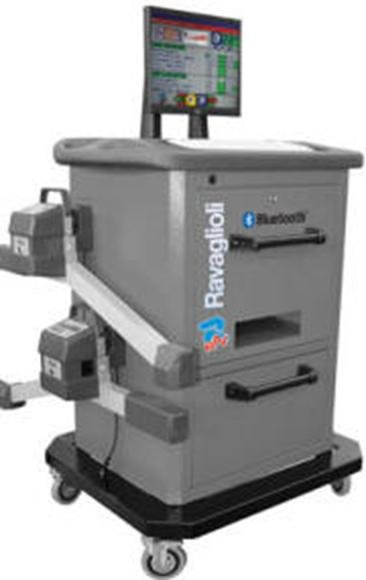

8 CCD aligner

  • Bluetooth transmission between front heads and cabinet;
  • Infrared transmission between sensor heads;
  • Deluxe cabinet with 19″ flat screen;
  • Front and rear heads have extended drop-down sensor frame;

 STANDARD EQUIPMENT

  • 1 control unit complete with PC, monitor, keyboard, printer and battery-charger
  • 2 Front measuring heads
  • 2 Rear measuring heads
  • 1 Brake pedal presser
  • 1 Steering clamp

TOTAL DRIVE 6 SERIES

Model TD8060T BTH 6CCD System

Standout Features:

  • Bluetooth Wireless Data Transmission
  • Non run-out 3 point wheel clamps
  • Deluxe cabinetry with printer drawer
  • Lightweight (8 lb.) sensor heads
  • Printer, 17” LCD display, keyboard
  • Data files store millions of printouts
  • Premium software including help images, trailer program, multi-axles, busses, coaches, and light trucks

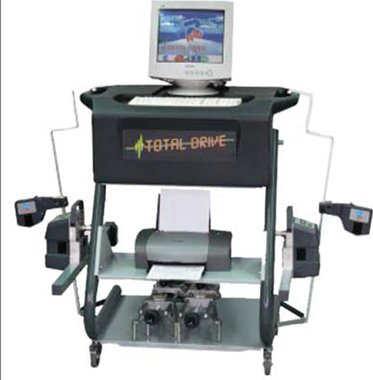

TOTAL DRIVE Hybrid SERIES Wired + Wireless

MODEL TD5040T Hybrid

Standout Features:

  • Same precision CCD measuring.
  • 4 camera optical system.
  • Your choice of wheel clamps-non run-out or run-out type.
  • Deluxe cart style cabinet.
  • Two lightweight sensor heads plus two electronic targets.
  • Printer, 17” LCD display, keyboard.
  • Deluxe software including help images.
  • Preloaded data base of vehicles plus ability to add and edit.
  • Simple 4 key 1-2-3-4 operation from console or from any sensor head.
Components

Tuning Components

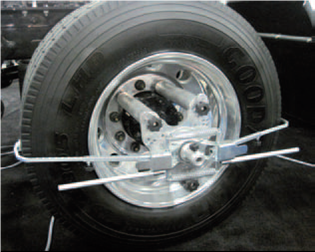

STDA30E 12”-28”

Pair of self-centering 4 point clamps with long removable claws. Moving centre crosspiece to adapt the position of the sensor to the vehicle body.

View Details
service_3_5 1

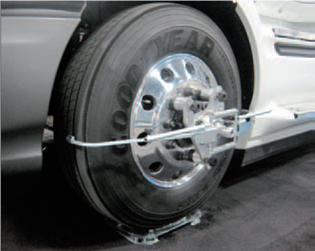

STDA48E 12”-28”

Pair of self-centering 4 point clamps, with quick locking units and metal removable conic claws.

View Details

STDA92

Set of 2 non-run-out quick adapters. By referencing the wheel center which is almost perfectly accurate, we can deliver a more accurate measurement without need to raise each wheel position to perform run-out compensation This improves accuracy while saving 15-20 minutes per truck.Each pair of clamps 6 short adapters,6 long adapters

View Details
