— Harley Davidson Tuning Tool & Accessories

Power bench for bike diagnostics and tuning

¨ Simulates engine load equivalent to road test •Gear 1

¨ Simulates double load for comfortable tuning measurements (VE maps) • Gear 2

¨ Provides measurements for both power and torque curves • Gear 1

¨ Facilitates measurement of VE maps for engine tuning

¨ Provides the opportunity to carry out engine diagnostics while under a load

¨ Utilizes built in fan for engine & rear tire cooling

¨ Embedded protection of rear tire

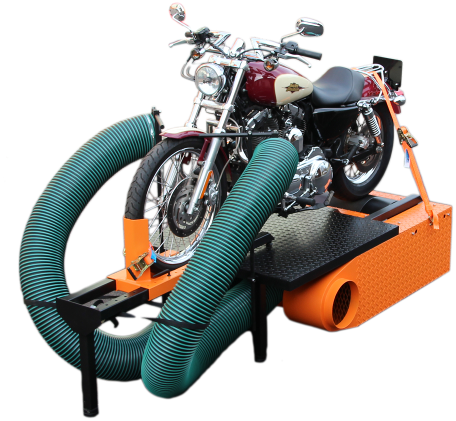

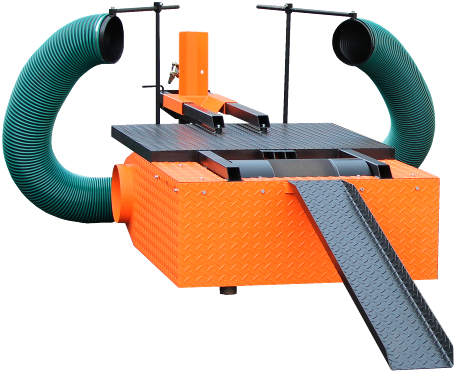

The Smart Power Bench is the ideal product for dealers and repair shops that want to use the diagnostic and/or tuning capabilities of MS531-HD to their full extend, including simulation of a road test. The smart design with a heavy weight and large diameter roller with built-in cooling fan simulates engine load equivalent to a road test, provides data for both power and torque curves, facilitates measurements of Volumetric Efficiency maps for engine tuning and give the opportunity to carry out engine diagnostics while under a load. The Smart Power Bench does not feature an eddy current or other type of brake. Instead, it uses a drum-driven fan system, giving more resistance when the rear wheel speed increases. This clever design makes it an affordable investment for any bike shop. Measuring only 99” long, 19” high and 40” wide, it does not require much space in your workshop either.
